High Precision Automated Powder Coating Line Electronics Components Powder Coat Paint Line

Brand Name:	Hongshun
Model Number:	HS-2160CPP
MOQ:	1 set
Price:	$20,000 to $50,000
Packaging Details:	film
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan

Certification:

CCC/CE

Workpiece Name:

Electronics Components

Maximum Workpiece Size Can Be Used:

L500*W200*H200mm Maximum Product Size

Process Speed:

2 Sets

Hanging Fixture Spacing:

150mm

Control The Power:

Single Phase AC220V-50Hz Single Phase + Ground Wire

Drive Power:

Three-phase AC380V-50Hz Three-phase Five-wire System

Supply Ability:

5 sets/month

Highlight:

High Precision Automated Powder Coating Line

Electronics Components Automated Powder Coating Line

High Precision Powder Coat Paint Line

Product Description

High Precision Automated Powder Coating Line for Electronics Components

Our Automated Powder Coating Line delivers exceptional precision for electronics components, featuring sophisticated control systems that regulate powder flow and spray gun movement with accuracy. The cleanroom-like powder booth prevents contamination, making this system ideal for coating small and delicate electronics parts while ensuring protection and functionality.

Pre-treatment Equipment Specifications

Spray pre oil removal: 1 set - L4000mm × W1200mm × H1500mm
Swimming type main oil remover: 1 set - L8000mm × W1200mm × H1200mm
Spray washing system: 6 sets - L4000mm × W1200mm × H1500mm
Spray pure water washing system: 1 set - L4000mm × W1200mm × H1500mm
Swimming type activation system: 1 set - 20,000mm × 1,200mm × 1,500mm
Swimming type passivation: 1 set - L10000mm × W1200mm × H1200mm
Drip device: L30000mm × W1200mm × H200mm
Automatic spray (pure water spray): 8 sets - L4000mm × W1200mm × H1800mm

Process Flow

Loading → Spray pre-degreasing and residue removal → Main degreasing by swimming + ultrasonic + heating cleaning → Spray water washing (I) → Spray water washing (II) → Activation by swimming → Spray washing (3) → Spray washing (4) → Swim lay type passivation → Spray washing (5) → Spray washing (6) → Pure water cleaning + adjustable automatic blow water → Drop of water → Dehydration drying furnace → Natural cooling → Online roast → Under a belt anti-pull installation baked → On a PP board make automatic coating powder spraying cabinet → Hurricane recovery Powder supply center → Secondary recovery system → Grinding cabinet → Curing oven drying → Natural cooling → QC inspection → Unloading → Packaging

Pre-treatment Process Timing

Process	Time	Process	Time
Spray pre-oil removal	1.5 min	The swimming style main activated	4-5 min
Swimming type main oil removal	4-5 min	Spray washing 3	1.5 min
Spray washing 1	1.5 min	Spray washing 4	1.5 min
Spray washing 2	1.5 min	Swimming type passivation	4-5 min
Spray washing 5	1.5 min	Spray washing 6	1.5 min
Pure water wash	1.5 min

System Features

Our design integrates technologies from multiple coating manufacturers, offering comprehensive solutions for diverse coating requirements. The system features fully automated conveying and intelligent control to reduce human resources, increase turnover space, improve production efficiency, and minimize workpiece damage from human error.

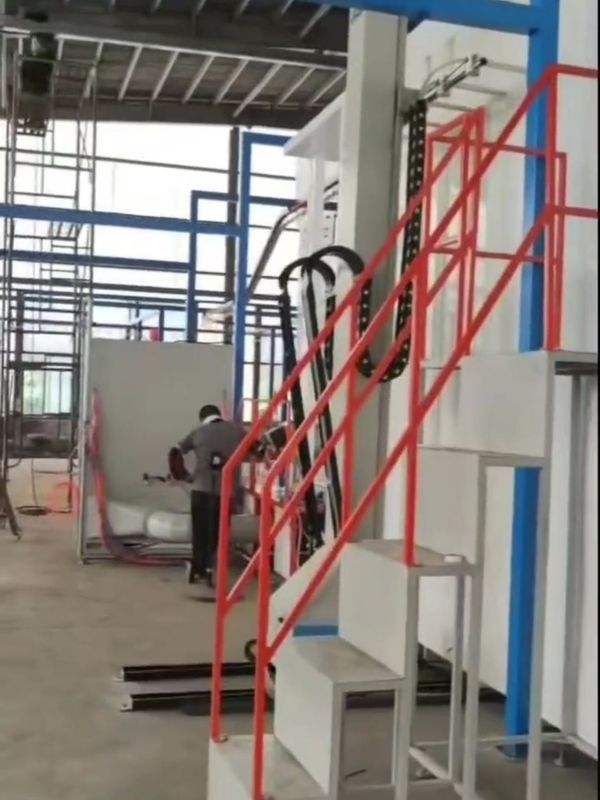

Application Examples
