Tunnel Type Cleaning Line With Mesh Belt Conveyor Fixture-free

Brand Name:	Hongshun
Model Number:	HS-4600TC
MOQ:	1 set
Price:	$30,000 to $70,000
Packaging Details:	film
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong

Certification:

CCC/CE

Applications:

Medium-sized Components

Conveyor Speed:

1-5m/min

Spray Pressur:

120bar

Power Supply:

380±10%/50HZ

Dryer Temperature:

Ultrasonic Frequency:

40KHZ

Supply Ability:

5 sets/month

Highlight:

tunnel type spray cleaning machine

mesh belt conveyor cleaning line

fixture-free spray cleaning equipment

Product Description

Tunnel Type Cleaning Line With Mesh Belt Conveyor Fixture-free

Tunnel Type Cleaning Line With Mesh Belt Conveyor, Fixture-free, Easy To Operate, High Efficiency And Durable

Tunnel Type Cleaning Line Overview

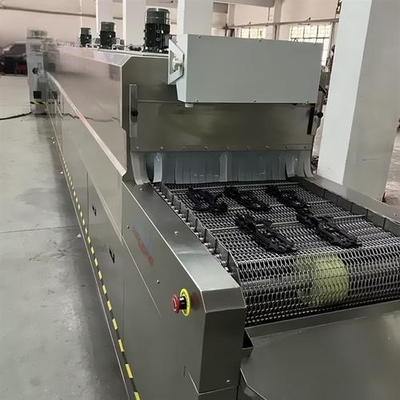

This tunnel-type cleaning line, equipped with a mesh belt conveyor, redefines industrial cleaning with its fixture-free design, ease of operation, high efficiency, and durability. The mesh belt (stainless steel 304, 5-10mm aperture) smoothly transports parts—from small hardware to medium-sized components—without needing custom fixtures, cutting setup time by 70%.

Its multi-stage cleaning process (ultrasonic wash/rinse/dry) removes oils, dust, and residues thoroughly, while the continuous tunnel structure enables 600-800 parts/hour throughput. A 10-inch PLC touchscreen simplifies operation; even new staff master it in 1 hour.

Built with heavy-duty stainless steel frames and corrosion-resistant components, it withstands 24/7 use. A machinery client reported: "It runs 3 shifts daily for 2 years with zero major issues." Ideal for automotive, electronics, and hardware factories, it balances efficiency and longevity for long-term production value.

Main Materials Specification

Component	Specification
Equipment Frame	Imported stainless steel square tube and profile
Equipment Tank & Chamber	Imported SUS304L plate with thickness of 2.5mm
Door Panel	SUS304 stainless steel plate with transparent tempered glass window (T=5mm)
PLC System	Mitsubishi series
Frequency Converter & Driver	Delta brand
Touch Screen (10")	Taiwan Weilun brand / MCGS
Spray Pump	Southern stainless steel pump series or equivalent
SUS Nozzle	Taiwan Changyuan or similar brand
Drive Motor	Taiwan Yongkun or equivalent brand
Overload Protection Clutch	Taiwan Dongyuan or equivalent brand
Thermostat	Omron or similar Japanese brand
Electronic Control Devices	French Schneider or equivalent brands
Air Leakage Switch	Schneider or similar French brand
Cylinder	SMC brand or equivalent quality brand

Process Flow Reference

Workpiece flow direction → Left in and right out:
Manual feeding → Ultrasonic cleaning → Fixed-point spraying → Air cutting → Fixed-point spraying → Mobile spraying → Mobile air cutting → Cooling section → Automatic unloading (truss manipulator) → Full inspection and packaging

For a complete technical solution of Tunnel Type Cleaning Line, please contact us. We will customize the design based on your product technical requirements and factory layout.
