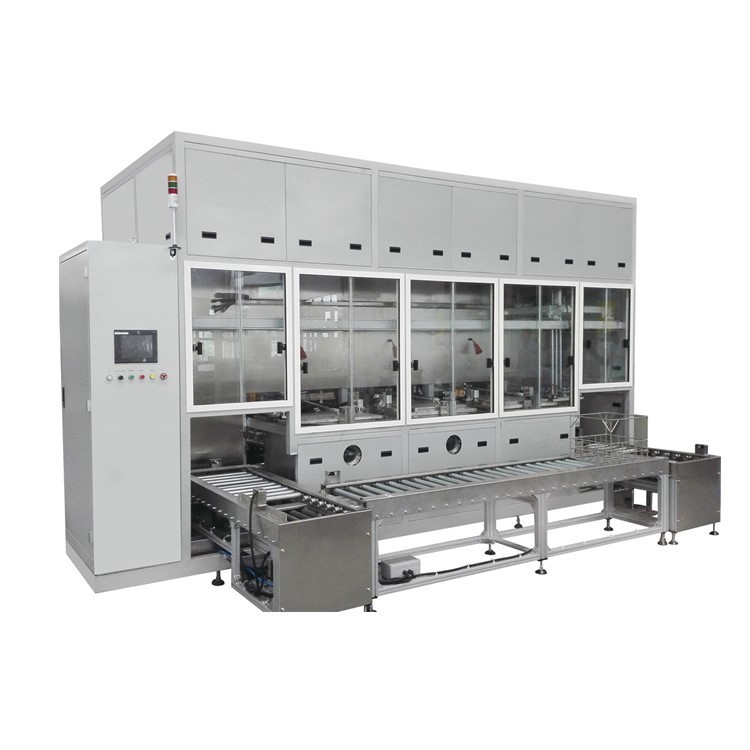

Fully Automated 4-Tank Vacuum Hydrocarbon Cleaner with Ultrasonic & Distillation Regeneration

Brand Name:	Hongshun
Model Number:	HS-4384MFG
MOQ:	1 set
Price:	$20,000 to $50,000
Packaging Details:	film
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong

Certification:

CCC/CE

Applications:

Complex Parts

Tank Volume:

About 160L

Work Rhythm:

5-7min / Basket

Power Supply:

380±10%/50HZ

Ultrasonic Frequency:

30-50 KHz

Drying Time:

5-7 Minutes

Supply Ability:

5 sets / month

Highlight:

fully automated vacuum hydrocarbon cleaner

4-tank ultrasonic distillation cleaner

hydrocarbon cleaning line with regeneration

Product Description

Fully Automated 4-Tank Vacuum Hydrocarbon Cleaner with Ultrasonic & Distillation Regeneration

This advanced industrial cleaning system delivers exceptional precision cleaning for complex components through a fully automated 4-tank vacuum hydrocarbon process.

Precision Cleaning Process for Complex Parts

The 4-tank automatic vacuum hydrocarbon cleaner (Model HS-4384MFG) provides superior cleaning performance for intricate components including blind-hole and bonded parts through a comprehensive 4-step automated process.

Workpieces are manually loaded into custom baskets (550×650×450mm) and automatically transported into the machine via a feeding cart. The cleaning sequence begins with:

Tank 1 - Degassing Rough Cleaning: Combines vacuum degassing, 28KHz 4800W three-sided ultrasonic cleaning, and oscillation at room temperature for ≥5 minutes to remove surface oil contamination.

Tank 2 - Degassing Rinsing: Repeats the degassing process to further reduce residue and ensure thorough cleaning.

Tanks 3 & 4 - Vacuum Precision Cleaning: These SUS304 10mm plate tanks utilize dual-frequency (28KHz/40KHz) 4800W ultrasonic waves with shared "CNST" VG95/2.2KW vacuum pumps. Their precision filtration systems (10μ/1μ) ensure microscopic impurity removal, critical for zinc-magnesium-aluminum parts requiring zero dirt and oil residue.

Tanks 5 & 6 - Vacuum Drying: Utilize hydrocarbon vapor (90-130℃) for steam bathing and drying. Equipped with Cuiman RT0.30S roots pumps and CNST VG155 liquid-ring vacuum pumps, these tanks leverage the vacuum boiling effect to dry workpieces in ≥5 minutes. An ion fan at the discharge port cools parts and eliminates static electricity, ensuring readiness for subsequent processes.

Operational Consumption Reference

Order Number	Name	Wastage	Remarks
1	Hydrocarbons	Add as required	Depends on cleaning volume
2	Filter Cotton Core	Approx. 12 per month	Replace as required
3	Heat Medium Oil	100L/2500 hours	Replace every 2500 work hours
4	Vacuum Pump Lubricating Oil	0.2L/200 hours	Check and add every 200 work hours
5	Power Consumption	Approx. 30kW/hour	Average value
6	Compressed Air	400 NL/min	Drive use (cylinder, pneumatic valve)

For a complete technical solution for the Fully Automated 4-Tank Vacuum Hydrocarbon Cleaner, please contact us. We will customize the design based on your product technical requirements and factory layout.
