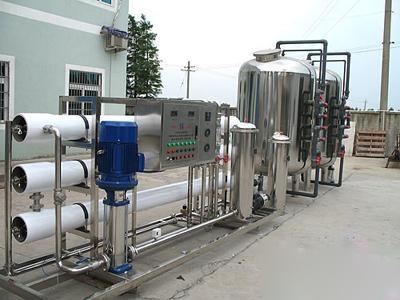

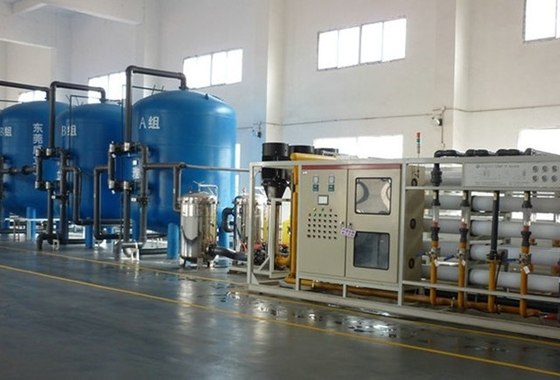

20 T/H Ultra-Pure Water Equipment for Electroplating And Coating Industries with ≤5-20us/cm Resistivity and 25℃ Design Temperature

Brand Name:	Hongshun
Model Number:	HS-SR2000L
MOQ:	1 set
Price:	$3,000 to $10,000
Packaging Details:	film
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan

Certification:

CCC/CE

Application Field:

Electroplating And Coating Industries

Raw Water Source:

The Local Municipal Tap Water Has A Conductivity Of Less Than 400μs/cm.

Ultra-pure Water Volume:

20 T/H

Ultra-pure Water Resistivity:

≤5-20us/cm

Design Temperature:

25℃

Supply Ability:

10 sets/month

Highlight:

20 T/H Ultra-Pure Water Equipment

≤5-20us/cm Ultra-Pure Water Equipment

25℃ Design Temperature Pure Water Treatment Machine

Product Description

Pure Water Equipment For Electroplating And Coating Industries

In the electroplating and coating industry, high-purity water is essential for achieving superior surface finish, brightness, and adhesion of plated parts. Our pure water equipment delivers water with conductivity below 15μS/cm for electroplating solution preparation and below 10μS/cm for rinsing applications.

System Overview

Our comprehensive water treatment solutions for the electroplating industry include pure water systems for electroplating solution preparation, rare metal recovery systems for rinsing wastewater, water recycling systems, and zero discharge wastewater systems. These integrated systems utilize advanced technologies including ultrafiltration, reverse osmosis, ion exchange, and EDI to meet stringent industry water quality requirements.

Available Capacities

0.25 tons per hour
0.5 tons per hour
1 ton per hour
2 tons per hour
Up to 100 tons per hour (custom solutions available)

Working Principle

Our electroplating pure water equipment transforms raw water into ultra-pure water through advanced membrane separation technology, combining reverse osmosis (RO) and electro-deionization (EDI) processes:

Pretreatment: Removes suspended solids, organic matter, and residual chlorine using sand filters and carbon filters
Reverse Osmosis (RO): Utilizes high-precision RO membranes to eliminate dissolved salts, colloids, and microorganisms
Electro-Deionization (EDI): Deep desalination through ion exchange membranes and resin under direct current field
Terminal Processing: Fine filtration and UV sterilization ensure final water safety and stability

Technical Specifications

Parameter	Specification
Raw Water Source	Municipal tap water with conductivity < 400μS/cm
Ultra-pure Water Capacity	2 t/h (standard model)
Ultra-pure Water Resistivity	≤ 15MΩ·CM
Design Temperature	25℃
Operation Mode	Automatic operation with manual adjustment capability
Design Boundaries	From raw water tank inlet to water supply outlet

Maintenance & Service

To ensure long-term stable operation and consistent water quality, regular maintenance includes cleaning circulation pipes and RO membranes, replacing filter elements and resins, and inspecting electrical control systems. Comprehensive water quality monitoring and daily operational management protocols are provided.

Process Flow Diagram

Our electroplating and coating pure water equipment delivers efficient, stable, and environmentally responsible operation, providing essential high-quality ultra-pure water support for industrial electroplating and coating applications.
