Automated Powder Coating Line
>
High Speed Automated Powder Coating Line Construction Materials Powder Coat Paint Line

High Speed Automated Powder Coating Line Construction Materials Powder Coat Paint Line

Brand Name: Hongshun
Model Number: HS-LP560CPP
MOQ: 1 set
Price: $20,000 to $50,000
Packaging Details: film
Payment Terms: L/C,T/T
Detail Information
Place of Origin:
Dongguan
Certification:
CCC/CE
Workpiece Name:
Construction Materials
Maximum Workpiece Size Can Be Used:
L4500*W500*H2000mm Maximum Product Size
Tank bracket Square Tube:
2.0T Galvanized Square Tube
Hanging Fixture Spacing:
150mm
Control The Power:
Single Phase AC220V-50Hz Single Phase + Ground Wire
Drive Power:
Three-phase AC380V-50Hz Three-phase Five-wire System
Supply Ability:
5 sets/month
Highlight:

High Speed Automated Powder Coating Line

,

Construction Materials Automated Powder Coating Line

,

High Speed Powder Coat Paint Line

Product Description
High Speed Automated Powder Coating Line for Construction Materials
Robust structured automated powder coating line specifically designed for construction materials, providing durable protection against corrosion and wear.
Automated Powder Coating Line Overview
Built to handle construction materials, this automated powder coating line features a robust structure capable of withstanding heavy-duty use and large-sized workpieces. The conveyor system is engineered to transport construction materials including steel pipes and aluminum profiles. The powder application system delivers thick, durable coatings that protect materials from corrosion and wear, making it an ideal solution for the construction industry.
Technical Specifications
  • Tank bracket square tube: 2.0T galvanized square tube construction
  • Spray tank outer shell: SUS304#1.2T stainless steel plate bending plate with TIG welding
  • Spraying side top plate: SUS304#1.2T stainless steel with laser screw holes
  • Circulating clear water tank: SUS304#1.5T stainless steel with overflow outlet and automatic water ball valve
  • Drainage outlet: SUS304#1.5T stainless steel 400*400*H800mm
  • Track bracket: SUS304# 50mm*50mm*t2.0mm square tube welding
  • Sprinkler piping: Industrial PVC pipe with comprehensive fittings
  • Pipe spacing: 300mm between pipes
  • Nozzle system: 96 easy-to-remove PP material nozzles with 400mm spacing
  • Circulating water pump: 2.2kw corrosion resistant 304# centrifugal high pressure pump
  • Pump capacity: Flow rate 40m³/h, lift 16m, inlet diameter φ65mm
Recirculating Tank Specifications
  • Tank size: L1800*W1000*H900mm
  • Material: SUS304#2.0T stainless steel plate with argon arc welding
  • Reinforcement: Bent reinforcement ribs
  • Water management: Floating ball water intake system with overflow drainage
  • Cover plate: Effective water mist removal and permeation control
Process Flow
Loading → Spray pre-degreasing and residue removal → Main degreasing (swimming + ultrasonic + heating cleaning) → Spray water washing (I) → Spray water washing (II) → Activation by swimming → Spray washing (3) → Spray washing (4) → Swimming type passivation → Spray washing (5) → Spray washing (6) → Pure water cleaning + adjustable automatic blow water → Water drop removal → Dehydration drying furnace → Natural cooling → Online roasting → Anti-pull installation baking → Automatic coating powder spraying cabinet → Hurricane recovery powder supply center → Secondary recovery system → Grinding cabinet → Curing oven drying → Natural cooling → QC inspection → Unloading → Packaging
Pretreatment Process Timing
Process Time Process Time
Spray pre-oil removal 1.5min Spray washing 3 1.5min
Swimming type main oil removal 4-5min Spray washing 4 1.5min
Spray washing 1 1.5min Swimming type passivation 4-5min
Spray washing 2 1.5min Spray washing 5 1.5min
Swimming type main activated 4-5min Spray washing 6 1.5min
Pure water wash 1.5min
Application Examples

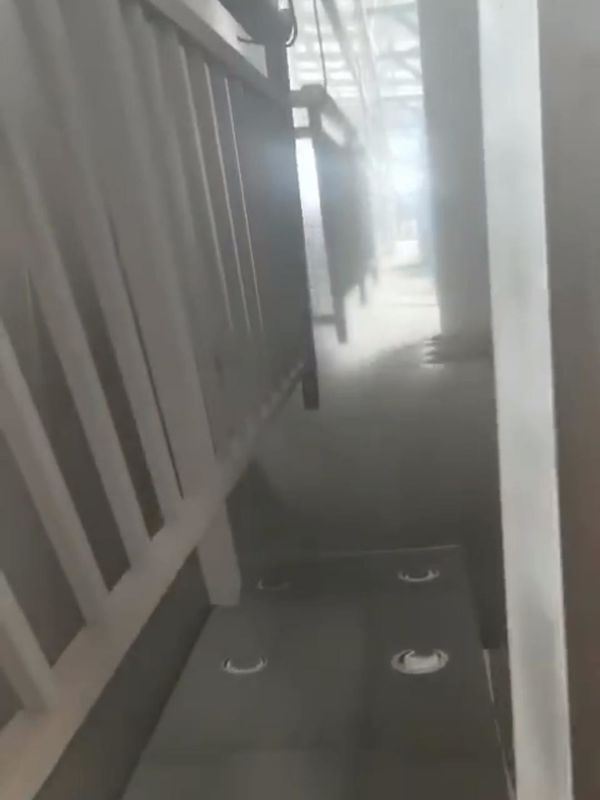

High Speed Automated Powder Coating Line Construction Materials Powder Coat Paint Line 0 High Speed Automated Powder Coating Line Construction Materials Powder Coat Paint Line 1 High Speed Automated Powder Coating Line Construction Materials Powder Coat Paint Line 2
The design and selection of production line process equipment are carefully considered to ensure optimal realization of process parameters and technical specifications for superior coating results.
