High Throughput Automated Powder Coating Line For Mass Automatic Powder Coating Machine

Brand Name:	Hongshun
Model Number:	HS-MP360CPP
MOQ:	1 set
Price:	$20,000 to $50,000
Packaging Details:	film
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan

Certification:

CCC/CE

Workpiece Name:

Aerospace Components

Maximum Workpiece Size Can Be Used:

L1300*W1100*H1300mm Maximum Product Size

Heating Time:

0~15min

Hanging Fixture Spacing:

150mm

Control The Power:

Single Phase AC220V-50Hz Single Phase + Ground Wire

Drive Power:

Three-phase AC380V-50Hz Three-phase Five-wire System

Supply Ability:

5 sets/month

Highlight:

High Throughput Automated Powder Coating Line

Mass Automated Powder Coating Line

Mass Automatic Powder Coating Machine

Product Description

High Throughput Automated Powder Coating Line

Our High-Throughput Automated Powder Coating Line is engineered for mass production applications, featuring a continuous conveyor system that handles large product volumes simultaneously. The powder application and curing processes are optimized for maximum speed while maintaining superior coating quality. This industrial-grade solution is ideal for coating consumer electronics and other high-volume products, significantly increasing production output.

Technical Specifications

Drying Furnace Burner & Heating System

Two sets of 500,000-calorific gas burners
Temperature range: Adjustable from room temperature to 250℃
Bottom-mounted heating system within curing furnace
Combustion chamber dimensions: 2200mm × 1200mm × 1200mm
Furnace construction: 100mm thick folded plate with 120K sisal rock wool and aluminum silicate wool insulation
Modular screw structure for easy disassembly and installation
Combustion chamber panel: SUS304 1.5T stainless steel seamless welding
Combustion chamber edge plate: 1.5T galvanized plate with reinforced bending
Exterior powder coating and curing finish
Seamless welded inner tank forming heat conversion chamber
Maintenance and cleaning ports: 450×450mm
Curing furnace fan: Oil-cooled insulation centrifugal air supply fan, 5.5KW power, 4800m³ air volume

Gas Burner System

Model: 500,000 kcal burner with combustion chamber hot air circulation system
Stainless steel gas burner with adjustable size and flame control
Master control system operation
Heating time: Approximately 15 minutes
One-year burner quality guarantee
Integrated sound and light alarm indicators for easy operation

Process Flow

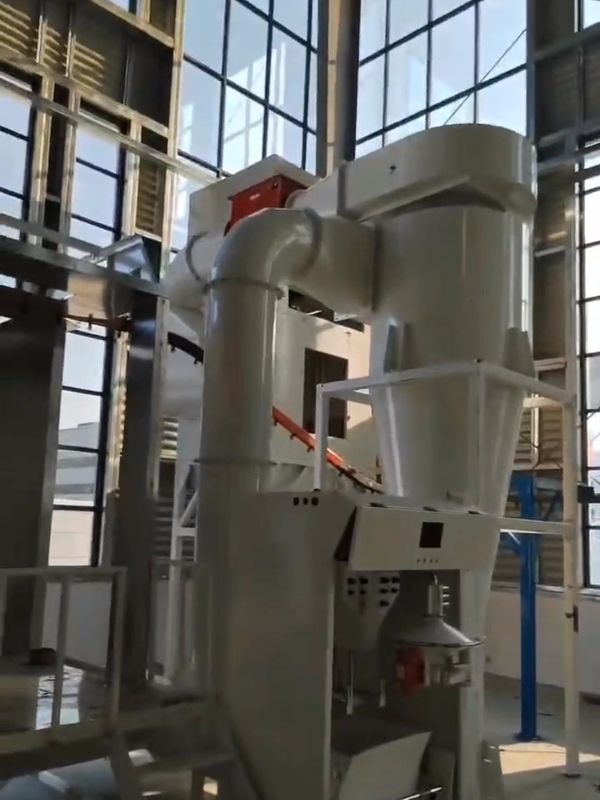

Loading → Spray Pre-degreasing & Residue Removal → Main Degreasing (Swimming + Ultrasonic + Heating) → Spray Water Washing (I) → Spray Water Washing (II) → Activation (Swimming) → Spray Washing (3) → Spray Washing (4) → Swimming Passivation → Spray Washing (5) → Spray Washing (6) → Pure Water Cleaning + Automatic Blow Water → Dehydration Drying Furnace → Natural Cooling → Online Roasting → Anti-pull Installation Baking → Automatic Powder Spraying Cabinet → Hurricane Recovery Powder Supply Center → Secondary Recovery System → Grinding Cabinet → Curing Oven Drying → Natural Cooling → QC Inspection → Unloading → Packaging

Pretreatment Process Timing

Process	Time	Process	Time
Spray Pre-oil Removal	1.5 min	Swimming Type Main Activated	4-5 min
Swimming Type Main Oil Removal	4-5 min	Spray Washing 3	1.5 min
Spray Washing 1	1.5 min	Spray Washing 4	1.5 min
Spray Washing 2	1.5 min	Swimming Type Passivation	4-5 min
Spray Washing 5	1.5 min	Spray Washing 6	1.5 min
Pure Water Wash	1.5 min

Typical Applications

Design Standards: Our production line equipment incorporates universal and standard components in structural design to maximize automation. We prioritize improved production working environments and labor health conditions while adhering to relevant national and industrial standards and safety measures.
