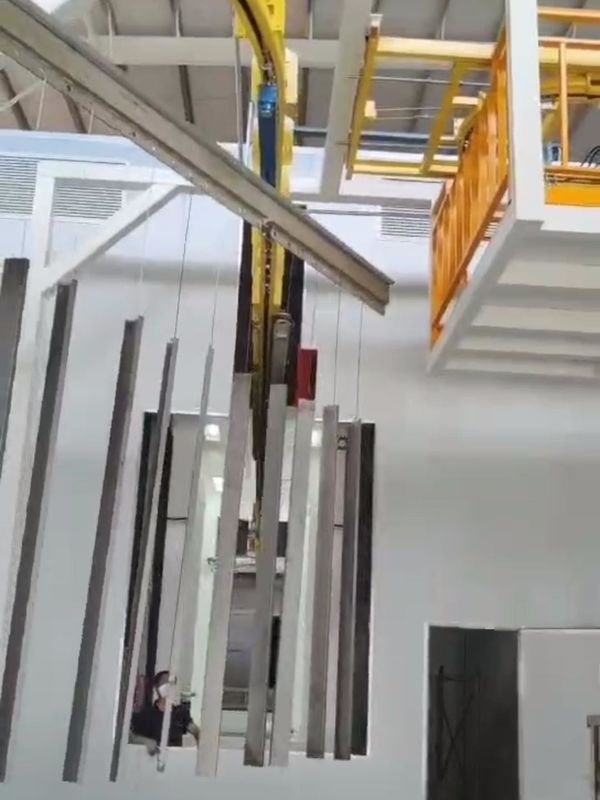

Automated Powder Coating Line Overview:

This Automated Powder Coating Line is designed to apply anti - slip finishes on industrial flooring. It uses a special powder with anti - slip properties and a precise application system to ensure uniform distribution. Structurally, it can be adjusted to work on large - scale industrial flooring projects. It provides a durable and safe anti - slip coating for factory floors, warehouses, etc.

Partial parameter description of Automated Powder Coating Line

Powder secondary recovery system:

1. 12 sets of membrane filter elements, 24 polyester fiber filter elements, the filtration accuracy reaches 99.99%, can meet the indoor emission standard;

2. Pulse backwash group

3. The 30kw fan power system is an important part of the whole spray booth

4. Sound insulation cotton is arranged in the room of the fan to effectively reduce the noise of the fan;

Specifications of quick color changing powder spraying cabinet: L7500*W2000*H2250mm (outer size) including feet 700mm

Material: PP board folding, stainless steel at the bottom, bottom recycling

 include :

1. The spray chamber A is equipped with 8 gun narrow slots, 4 on each side,

2. The inlet and outlet are equipped with one hand nozzle each,

3. There are 6 sets of lighting in the spraying room, and 2 sets of lighting at the top of the inlet and outlet of the spraying room,

4. Two sets of air knife powder cleaning devices are set on both sides of the spraying room

5. The bottom of the spray room adopts the adjustment plate method to ensure the best air flow of the suction.

6. The bottom frame of the spray booth is 880mm, which is made by welding 50mm square tube

7. The artificial guardrail is made of 50mm square tube welding and fixed with screws

8. The manual workbench is made of steel plate bending plate

9. The bottom of the spray cabinet is sealed with galvanized plate snap fasteners, and the galvanized plate is bent and sprayed with powder. The handle is installed to make the appearance beautiful

Specifications of large cyclone powder recovery system: L1300*D1300*H5426mm large cyclone (outer size)

The big cyclone uses an efficient recovery device

Air volume: 14000-20000 m3/h,

It includes: one set of cyclone separator

Plate thickness: 3mm

Height: 5426 (mm) Height: 5426 (mm)

Straight section diameter: 1300 (mm)

Shape: Cone

Carbon steel plate surface spraying

One movable lower hopper is available

Integrated powder pump conveying device 1 set

The powder recovered after passing through the cyclone separator is returned to the powder supply center

A large cyclone is connected to the filter pipe

The diameter of the straight pipe and elbow is 500mm, which is fixed by screws

Duct material: 1.5mm rolled spray plastic steel plate

Process flow of Automated Powder Coating Line:

Loading⇒ Spray pre-degreasing and residue removal⇒main degreasing by swimming + ultrasonic + heating cleaning ⇒ Spray water washing (I) ⇒ Spray water washing (II) ⇒ Activation by swimming ⇒ spray washing (3) ⇒ spray washing (4), swim lay type passivation, spray washing (5) ⇒ spray washing (6) ⇒ pure water cleaning + adjustable automatic blow water, drop of water, dehydration drying furnace, natural cooling, online roast ⇒ under a belt anti-pull installation baked ⇒ on a PP board make automatic coating powder spraying cabinet⇒ hurricane recovery Powder supply center ⇒ Secondary recovery system ⇒ Grinding cabinet ⇒ Curing oven drying ⇒ Natural cooling⇒ QC inspection ⇒ Unloading ⇒ Packaging

Time of each pretreatment process of Automated Powder Coating Line:

Our typical customers:

  The overall layout design of the production line considers the rationality of the whole production line process, and the coordination, neatness, beauty and convenience of operation and maintenance of the equipment layout;
