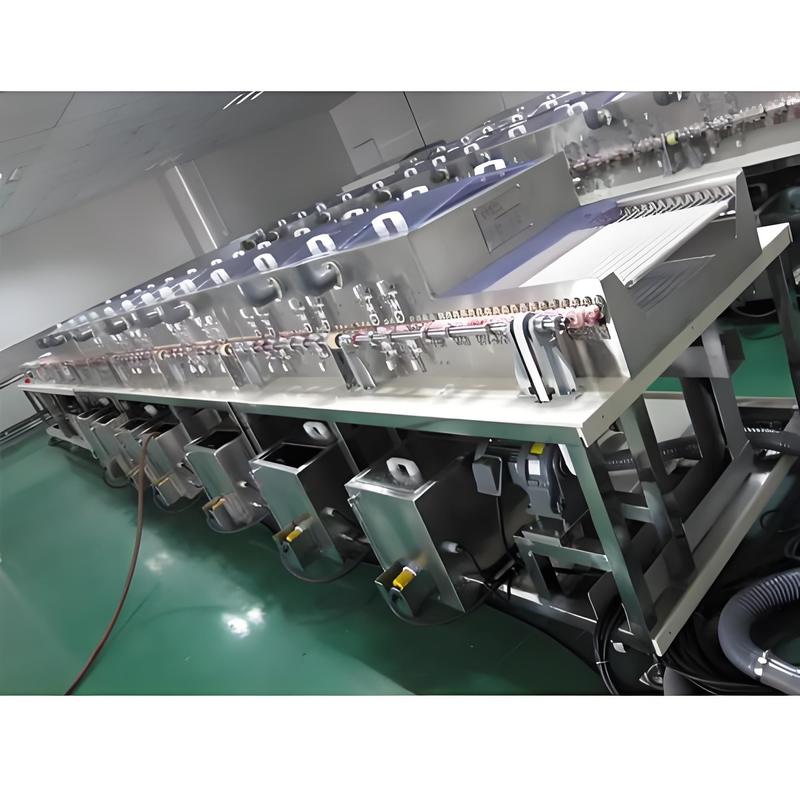

High Efficiency Ultrasonic Industrial Glass Washing Machine For Laminated Glass Processing

Brand Name:	Hongshun
Model Number:	HS-6050MAF
MOQ:	1 set
Price:	$20,000 to $40,000
Packaging Details:	film
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong

Certification:

CCC/CE

Applications:

Laminated Glass Processing

Processing Capacity:

250-350 Sheets/hour

Max Glass Size:

600×500mm

Power Supply:

380±10%/50HZ

PLC:

Mitsubishi Of Japan

Touch Screen:

Taiwan's "HITECH"

Pneumatic Controller:

Japan “SMC”

Supply Ability:

5 sets / month

Highlight:

High Efficiency Industrial Glass Washing Machine

Ultrasonic Industrial Glass Washing Machine

Ultrasonic Float Glass Washing Machine

Product Description

High Efficiency Ultrasonic Industrial Glass Washing Machine For Laminated Glass Processing

High-Efficiency Ultrasonic Flat Glass Cleaning System

This advanced cleaning system revolutionizes laminated glass processing by combining superior performance with significant cost savings. Utilizing ultrasonic technology, it generates high-frequency vibrations that effectively remove even microscopic contaminants from glass surfaces—essential for ensuring strong interlayer adhesion in laminated glass production.

Engineered for maximum efficiency, the system optimizes cleaning cycles to handle high-volume production while maintaining precision, significantly reducing processing time and labor costs. Its adaptable design accommodates various glass thicknesses, making it ideal for laminated glass applications in automotive, architectural, and safety sectors.

By delivering spotless, residue-free surfaces, the system enhances both the durability and optical clarity of finished laminated glass products. For manufacturers aiming to increase productivity, lower operational expenses, and improve laminated glass quality, this cost-effective cleaning solution provides exceptional value.

Technical Specifications & Materials

Order No.	Main Unit	Brand/Material	Explanation
1	Conveying shaft spacing	100㎜	Rolling brush section 110㎜
2	Rack material	SUS304 50x50x2㎜ square tube
3	Main cleaning tank	"South Asia" transparent PVC board	T=10mm
4	Water box	Taiwan "South Asia" transparent/ivory PVC board	T=10mm
5	Door plank	Taiwanese "South Asia" ivory PVC board	T=6mm
6	Upper cover plate 1	Taiwan "South Asia" transparent PVC board	T=6mm T=1.5mm (brush section and air knife section made of stainless steel plate)
7	Anti-leak liquid collection tray	Taiwanese "South Asia" ivory PVC board	T=8mm
8	Feeding roller 1	SUS304 shaft core
9	Pressing roller 2	SUS304 shaft core coated with rubber	Φ 32mm (brush section)
10	Feeding roller surface	White UPE roller + white fluorine rubber O ring	Two ends supported by guide wheel, middle is freewheel of fluororubber
11	Final drive shaft	Imported bearing steel	φ20mm
12	Pipe system	"Anchor plate" PVC Sprinkler pipe: 3/4"PVC	Total inlet pipe: 1" PVC, Total drain pipe: 2"PVC
13	Touch screen	Taiwan's "HITECH"	10.4 inches
14	PLC	Mitsubishi of Japan
15	Contactor/circuit breaker	"Spanx."
16	Frequency transformer	Japan's Panasonic
17	Thermostat	Japan "OMRON"
18	Inductor	Japan "OMRON"
19	Pneumatic controller	Japan "SMC"
20	Water pump	South China
21	High pressure positive blower	China's "Sen Sen"
22	Drive motor	Taiwan "Tai Li"
23	Roll brush motor	Taiwan "Tai Li"

Custom Technical Solutions

For a complete technical solution of the Ultrasonic Flat Glass Cleaning System, please contact us. We will customize the design based on your specific product technical requirements and factory layout.
