Aluminum Anodizing Production Line for Automotive Components

Brand Name:	Hongshun
Model Number:	HS-1500YH
MOQ:	1 set
Price:	$20,000 to $50,000
Packaging Details:	film
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan

Certification:

CCC/CE

Workpiece Name:

Automotive Components

Production Capacity:

1500 Parts Per Hour

Environmental Temperature:

0℃~45℃ Is Most Suitable

Relative Humidity:

Less Than Or Equal To 90%

Water Pressure:

0.3Mpa

Main Power Supply:

380±10%/50HZ

Supply Ability:

5 sets/month

Highlight:

automotive components automated anodizing line

50hz automated anodizing line

Product Description

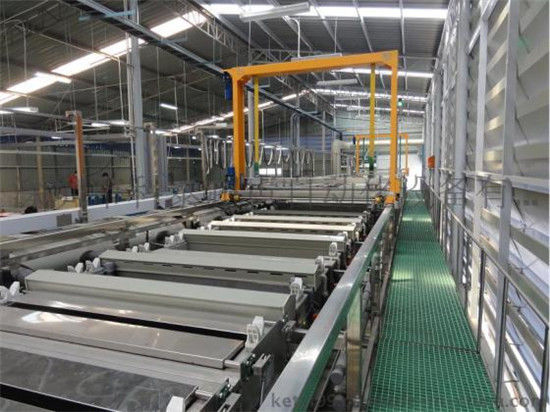

Aluminum Anodizing Production Line for Automotive Components

This specialized aluminum anodizing production line is engineered specifically for automotive components, delivering corrosion-resistant and aesthetically superior coatings on aluminum parts. With high-speed processing capability of 1500 parts per hour and anti-vibration design for uniform coating quality, this system meets rigorous automotive industry standards and is essential for automotive part suppliers.

Anodizing Production Line Technical Specifications

Tanks 10, 11, and 12: Anodizing Tanks

1-6-1 Structure Configuration
Inner tank dimensions: 800×4000×1600mm (L×W×H)
Constructed with Taiwan Lida 15mm PP material with A3 steel reinforcement
Triple-layer rust-proof coating with 6mm PP plate welding for structural integrity
Side liquid discharge system at tank bottom
Tank reinforcement: A3 material 80×40×4mm square tube with 6mm PP plate welding
Tank edge reinforcement: 15mm PP material chamfer welding
Dual exhaust hoods on both sides connected to main exhaust pipe

Oxidation Power Supply System

25V-3000A voltage and current stabilizing power supply
DC conductive copper busbar with sufficient cross-sectional area
Insulating pads on all anode and cathode conductive seats
Anode contact conductive electrode in water design for optimal conductivity
Minimized connection points with polished surfaces and conductive paste
Cathode lead plate provided by buyer or available separately

Cooling System

20HP direct cooling refrigeration machine
Direct circulation cooling of oxidation tank
Temperature control accuracy: ±2℃

Filtration System

Circulating filter connected with exchange tank
Filtration accuracy: 5μ
Flow rate: 20T/h
Taiwan "National Treasure" chemical special pump
PP material filtration bucket

Piping System

Pure water pipe: φ3/4" PVC pipe with ball valve
Drainage pipe: φ3" PVC pipe with fittings/spherical valve
Air stirring: φ3/4" PP pipe

For complete technical solution of Automated Anodizing Line, please contact us. We provide customized designs based on your product technical requirements and factory layout.

Anodizing Production Process Flow

Feed material → Chemical degreasing → Water washing → Alkali etching → Water washing → Water washing → Acid washing → Water washing → Water washing → Anodizing → Anodizing → Anodizing → Water washing → Water washing → Coloring → Water washing → Coloring → Water washing → Coloring → Water washing → Coloring → Water washing → Unloading

Operating Conditions

Parameter	Specification
Environmental Temperature	0℃~45℃ (optimal range)
Relative Humidity	≤ 90%
Water Pressure	0.3Mpa
Steam Source	0.2~0.5Mpa
Main Power Supply	380±10%/50HZ, 25V-3000A rectifier, Refrigerator 22.5KW, Filter 8KW

Our Typical Customers

Installation and Training Services

Installation

Seller provides complete equipment installation details for site preparation
On-site installation and debugging at customer's factory

Training

Comprehensive on-site training for plant operators during installation
Covers normal operation, maintenance procedures, problem analysis, and emergency protocols
